Wholesale Vertical Picosecond Tattoo Removal Machine Suppliers, Factories

Product Description

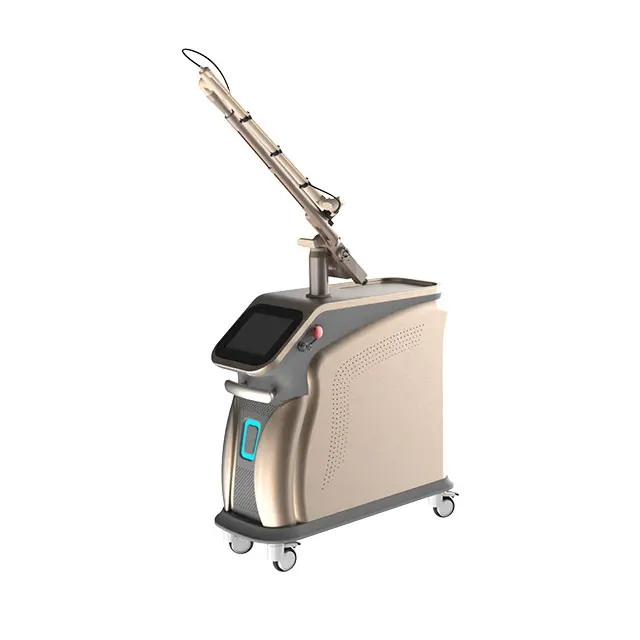

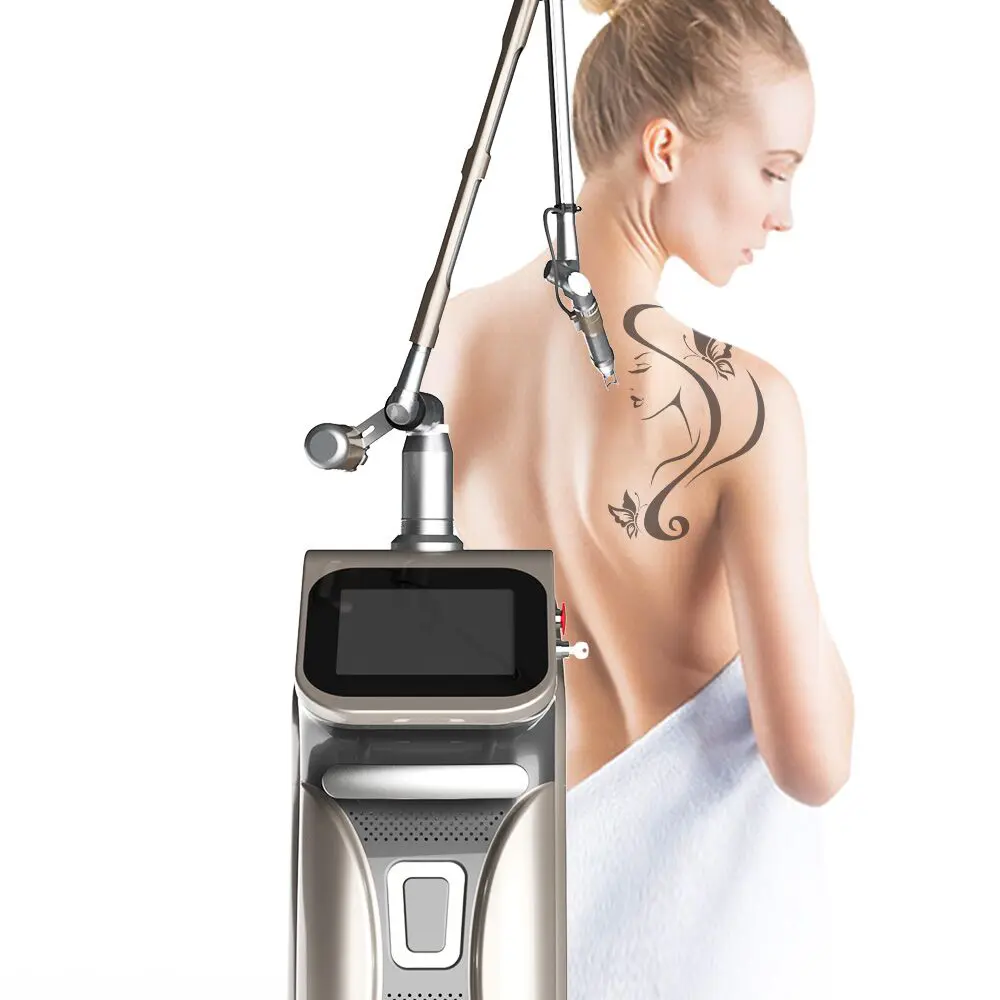

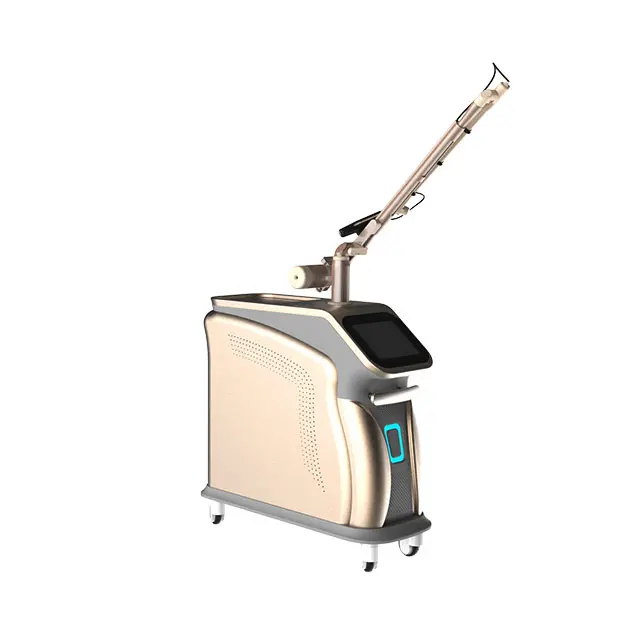

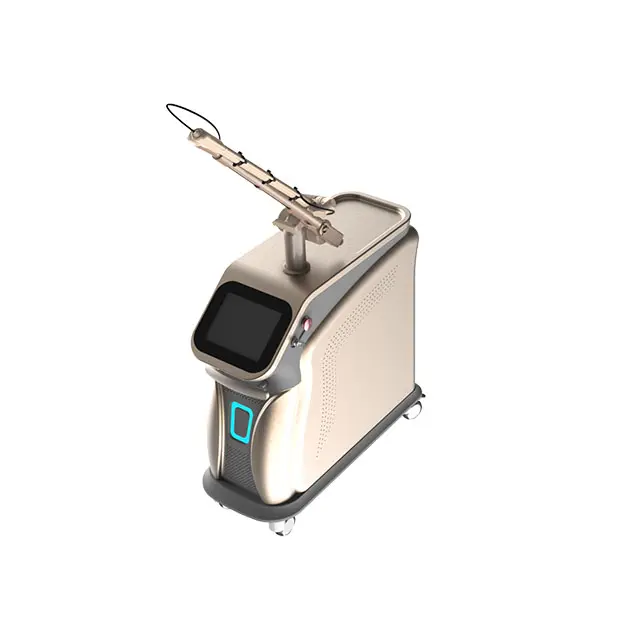

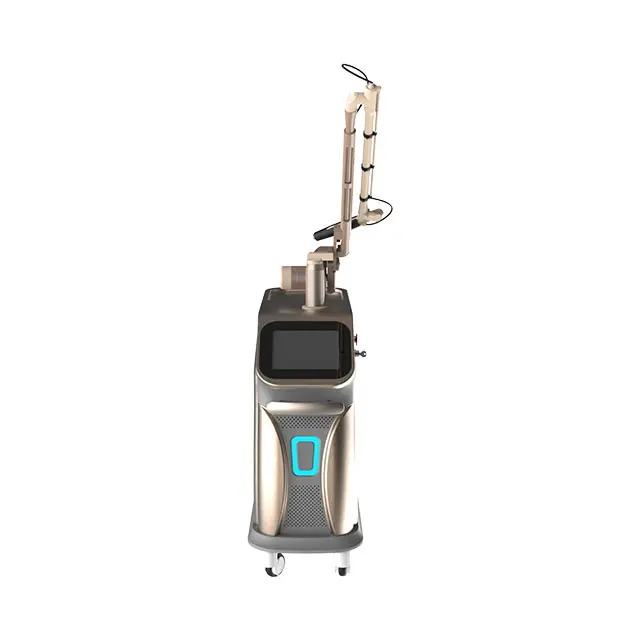

Picosecond ND YAG Laser Machine
Indications
Freckles, sunburn, age spots, chloasma, liver spots, dermal spots, and other stubborn spots
Skin rejuvenation and whitening, narrow pores
Uneven skin tone, whitening, skin rejuvenation
Acne marks, scars
Red and black moles, birthmarks
Tattoos, red and blue pigmentation, eyebrows tattoo
Picosecond ND YAG Laser System Principle

The picosecond laser uses trillions of seconds of powerful laser energy to grind the pigment in the skin tissue to achieve the effect of completely removing tattoos and various skin pigments. Through specialized fractional lenses, picosecond lasers can convert laser energy into gentle pressure that produces new collagen by squeezing cells and activating native cells without burning or damaging the skin.

Laser System Principle 1 Laser System Principle 2 Laser System Principle 3
Specifications
Laser Type Pico second ND: YAG Laser
Energy Level Single Mode: Max 400mj (532nm), Max 800mj (1064nm)
Double Mode: Max 800mj (532nm), Max 1600mj (1064nm)
Pulse Width 750ps
Wavelength 1064nm, 532nm, 585nm (option), 650nm (option)
Frequency 1-10Hz
Spot Size 2-10mm
Dimension 107 * 50 * 118 CM
Weight 115 KG
Operation Steps
  • 1 Clean the treatment area; if hair is present, remove it first.
  • 2 Apply anesthetic cream as needed.
  • 3 Disinfect the treatment area.
  • 4 Adjust the treatment parameters according to the parameter table.
  • 5 All treatments are recommended not to break the skin or ooze blood, which can greatly reduce the risk of melanin deposition, and the number of treatments will increase accordingly.

    When starting treatment, use low frequency first (let the machine warm up first to reduce the damage to the machine), and slowly close to the skin to continuously emit light. Then slowly raise up to find a suitable distance to start treatment. After a few minutes, you can increase the frequency. When you start treatment, you must first get close to the skin to continuously emit light, and then slowly raise the treatment head, so as to avoid the sound from scaring the patient. It can also find the best treatment distance. When the blasting sound is the loudest, it is when the energy is focused. In many cases, the focused energy is not used, because the focused energy will bleed, and the probability of coloration is very large. Generally 2 minutes after treatment the skin will flush and the effect is best. Focusing on energy: The point with the greatest energy can be judged by listening to the sound, and the point where the sound is the loudest and the most brittle can be understood by beginners.
  • 6 It is recommended to use repair products and products that inhibit pigmentation after treatment.
  • 7 After treatment, strict physical sun protection must be used (masks, umbrellas, etc.).
  • 8 The general treatment interval is about one month. The parameter table has the recommended number of treatments, and the doctor determines whether to add treatment according to the patient's recovery.
Operation Steps Diagram
Postoperative Care Instructions
  • After treatment, there may be slight pain, white skin surface, epidermal bleeding, transient redness, swelling, blackening or even purpura. They can be absorbed by themselves without being too nervous. If there is a scab that will fall off on its own within 7-14 days, it should not be removed artificially to avoid delaying skin healing and forming pigmentation.
  • Due to individual differences or climate changes, within a few days after treatment, the treatment area must not be in direct contact with water or other solutions to prevent infection. Try to eat less spicy food, excessive drinking, and smoking.
  • Very few individuals may have pigmentation on their skin after treatment, which usually subsides after 1-3 months.
  • After the operation, try to avoid activities in the sun and exposure, in order to avoid the production and increase of pigmentation. Physical sunscreen works best.
  • If any abnormal phenomenon is found after the operation, please go to the outpatient consultation and treatment in time.
Exhibition

We have sold a lot of products all over the world. Our company participates in many exhibitions every year, such as Italy, Dubai, Spain, Malaysia, Vietnam, India, Turkey and Romania. There are some photos below:

Exhibition Photo 1 Exhibition Photo 2 Exhibition Photo 3
Package and Delivery

We package the machine in export standard metal box, and we use DHL, FedEx or TNT to delivery the machine to you by door to door service.

Package Photo 1 Package Photo 2 Package Photo 3 Package Photo 4 Package Photo 5 Package Photo 6
Frequently Asked Questions (FAQ)
Q1: What skin problems can be treated with the Picosecond ND YAG Laser?

It effectively treats various stubborn skin spots (freckles, sunburn, age spots, chloasma, liver spots), skin rejuvenation, narrowing pores, acne marks, scars, birthmarks, and multi-color tattoos (red, blue, black).

Q2: How does the Picosecond Laser technology work?

The system delivers powerful energy in picoseconds (trillions of a second) to shatter skin pigments into tiny particles. Through specialized fractional lenses, it converts laser energy into gentle pressure to stimulate collagen production without burning or damaging surrounding skin tissue.

Q3: How many sessions are needed, and what is the treatment interval?

The general treatment interval is about one month. The recommended number of sessions varies depending on the specific skin condition, and the physician will adjust the course of treatment based on the patient's individual recovery.

Q4: What should patients do for post-treatment care?

Patients should apply strict physical sun protection (using masks, umbrellas), keep the area away from water for a few days to prevent infection, avoid manually picking scabs, and limit spicy food, alcohol, and smoking.

Q5: How is the machine safely packaged and shipped?

The equipment is packed in an export-standard protective metal box to ensure safety during transit. We ship worldwide using trusted express couriers like DHL, FedEx, or TNT with door-to-door delivery service.
