According to the principle of selective photopyrolysis, when shorted the action time of the laser, the laser energy diffuses less to the surrounding tissue. If the energy is limited to the target that needs treatment, the surrounding normal tissue can be protected, so the selectivity of treatment become stronger.

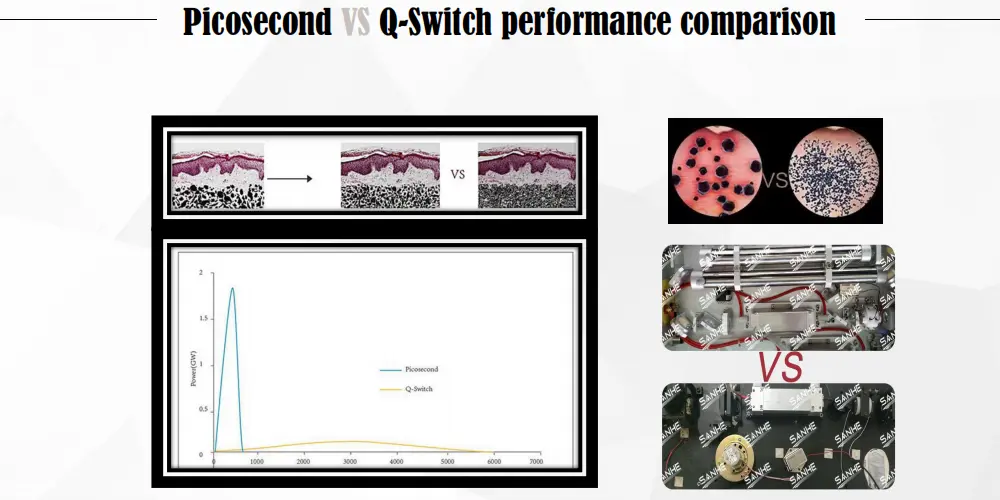

The picosecond laser pulse width is only 1% of the traditional Q-switched laser. Under this ultra-short pulse width, the light energy is too late to be converted into heat energy, and there is almost no photothermal effect. When the laser energy is absorbed by the target, its volume will expand rapidly, and then be blasted and torn into pieces.
| Wavelength | 1064nm, 532nm |
| Output Energy | Single pulse: 1064nm: 100-800mj; 532nm: 100-400mj Double pulse: 1064nm: 100-1600mj; 532nm: 100-800mj |
| Energy density (max.) | 1064nm: 15.0J/cm²; 532nm: 8.0J/cm² |
| Pulse duration | 750ps |
| Repetition Rate | 1-10Hz adjustable |
| Spot Size | φ2-10mm adjustable |
| Light guide beam | 650nm red laser |
| Cooling System | Closed Cycle Water to Air Heat Exchanger |
| Laser delivery | Korea 7 jointed articulated arm |
| Controlling system | 10.4 inch TFT color touch screen |
| Power requirement | 220V, 10A, 50/60Hz; 110V, 10A, 50/60Hz |
| Machine dimensions | 680mm × 400mm × 820mm |
| Net weight | 75kg |
| Note | Technical data changes will not be notified specially |
We have sold a lot of products to all over the world. Our company participates in many exhibitions every year, such as Italy, Dubai, Spain, Malaysia, Vietnam, India, Turkey and Romania. There are some photos below:
We package the machine in export standard metal box, and we use DHL, FedEx or TNT to deliver the machine to you by door to door service.
It effectively treats multi-colored tattoos (blue, black, red, yellow, green, brown), dermal pigmentation (Ota nevus, Ito nevus), epidermal pigmentation (freckles, age spots, coffee spots), vascular lesions, and performs skin rejuvenation with carbon peeling.
The pulse width of the picosecond laser is only 1% of traditional Q-switched lasers. This ultra-short pulse creates negligible photothermal effect, rapidly blasting target pigment particles into tiny fragments with minimal damage to surrounding tissue.

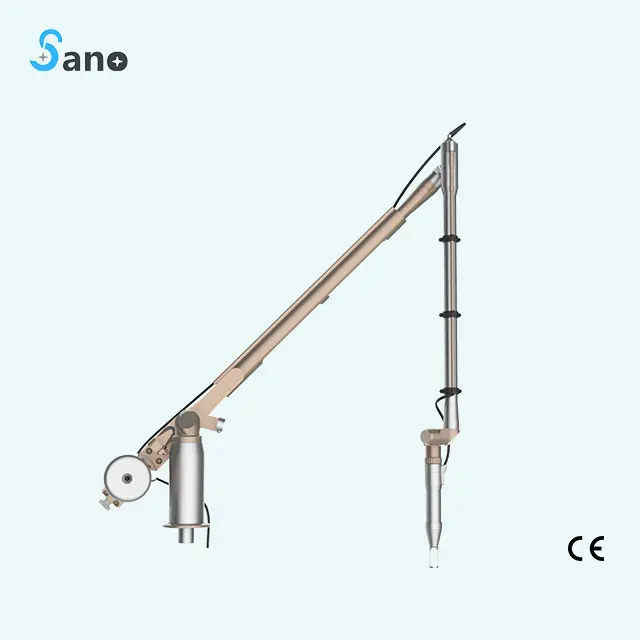

Key features include a Korean 7-jointed articulated arm for effortless handling, adjustable spot size (2-10mm), dual pulse adjustment (1064nm/532nm), a red diode aiming beam, and a powerful built-in closed-cycle water cooling system for continuous operation.
The system provides 1064nm and 532nm dual wavelengths. All settings, including energy output, wavelength selection, and spot size, are controlled via an intuitive 10.4-inch TFT color touch screen.
The machine is securely packed in an export-standard metal case to ensure safety during transit. We ship worldwide door-to-door using trusted international express carriers such as DHL, FedEx, and TNT.
