HIFU can treat deeper skin conditions compared to other all kinds of RF or laser devices. It is delivering the high intensity focused ultrasound energy to much deeper layers of skin (including Epidermis, Dermis, Subcutaneous and Facial Muscle) with 4.5mm penetration depth, heating the skin tissue in focal region up to 65-70°C temperature in just few seconds, causing the contraction of the all targeted tissues, which results in the best skin lifting & tightening and skin texture & tone.

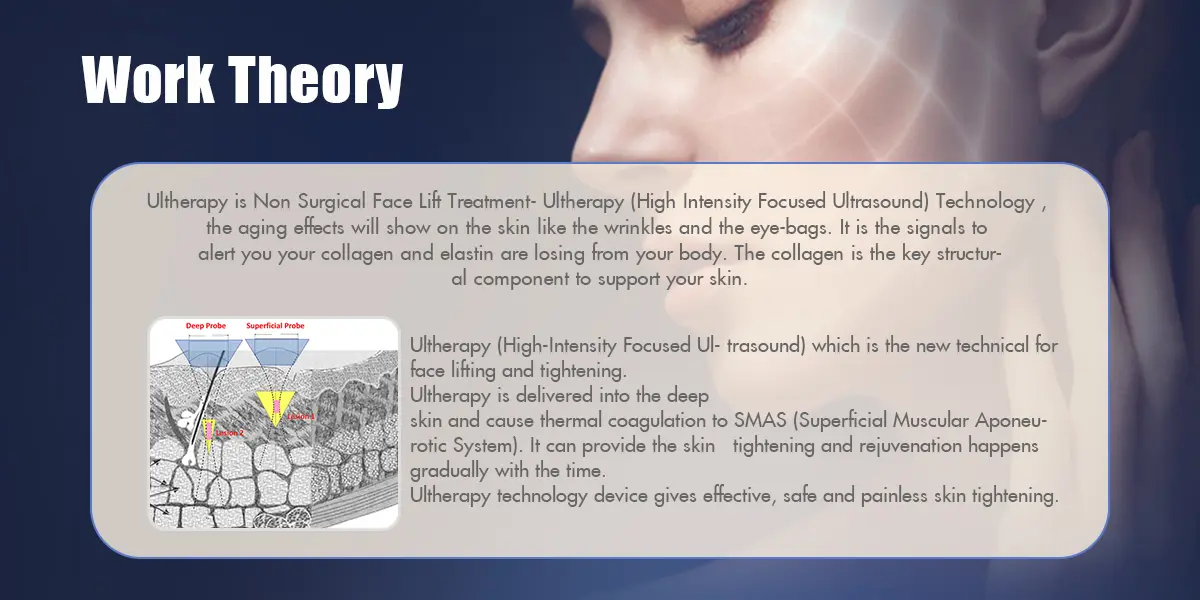

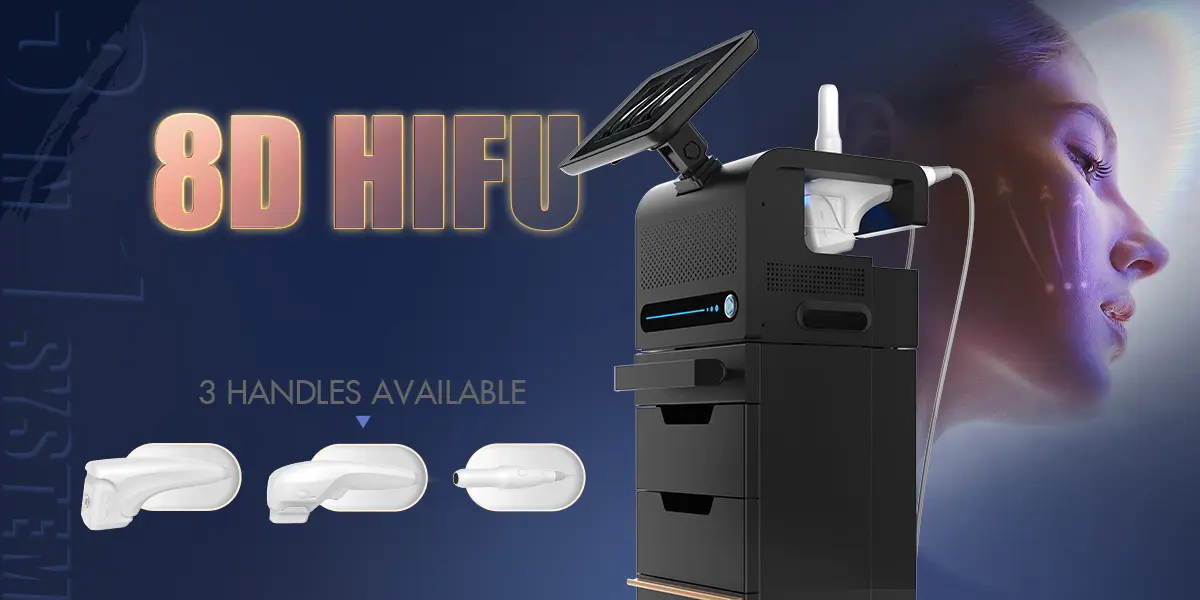

8D HIFU is Non Surgical Face Lift Treatment- 8D HIFU (High Intensity Focused Ultrasound) Technology , the aging effects will show on the skin like the wrinkles and the eye-bags. It is the signals to alert you your collagen and elastin are losing from your body. The collagen is the key structural component to support your skin. 8D HIFU (High-Intensity Focused Ultrasound) which is the new technical for face lifting and tightening. 8D HIFU is delivered into the deep skin and cause thermal coagulation to SMAS (Superficial Muscular Aponeurotic System). It can provide the skin tightening and rejuvenation happens gradually with the time. 8D HIFU technology device gives effective, safe and painless skin tightening.
| Frequency | 4MHz | Power | 350W |
|---|---|---|---|

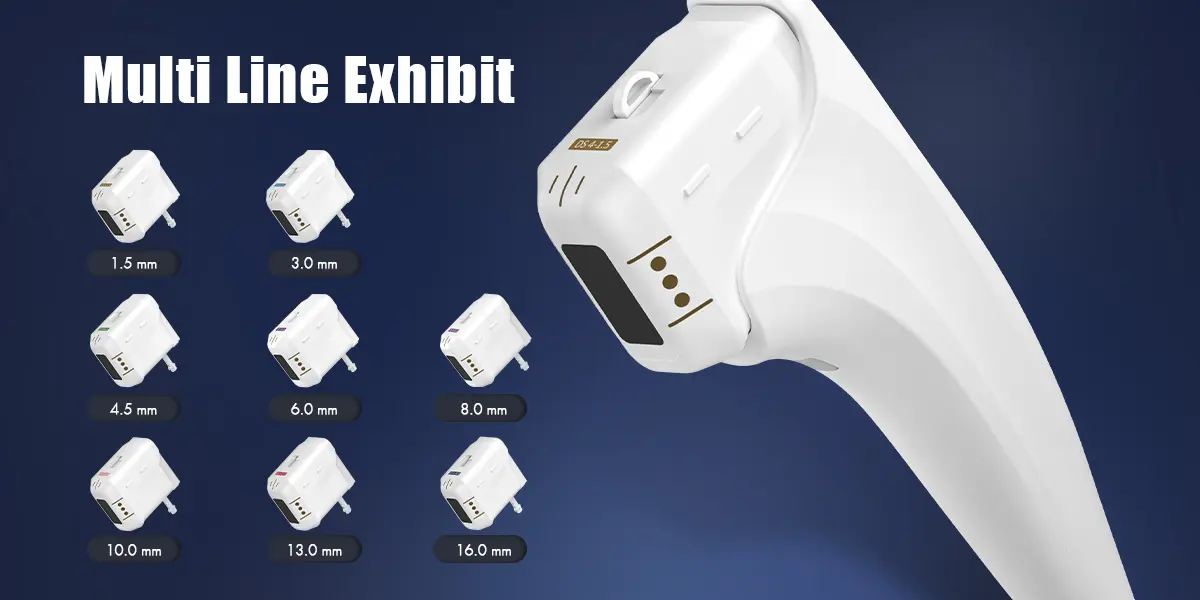

| Treatment Depth | DS1.5mm DS3.0mm DS4.5mm (Standard) DS6.0mm DS8.0mm DS10.0mm DS13.0mm DS16.0mm (Optional) |
Treatment Length | 8-25mm |
| Width | 0--10mm | Energy | 0.1-- 2.0J |
| Pitch | 1.0mm-2.5mm | Clearanceh | 1.0mm-2.0mm |
| Power Source | AC 110V~220V--50Hz/60Hz | ||

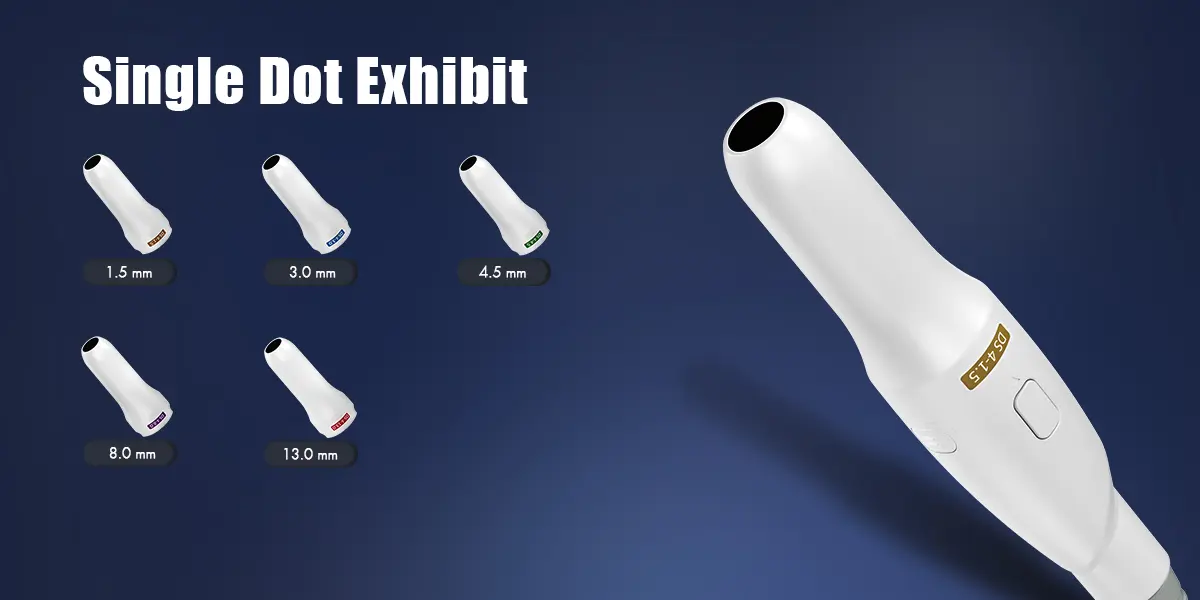

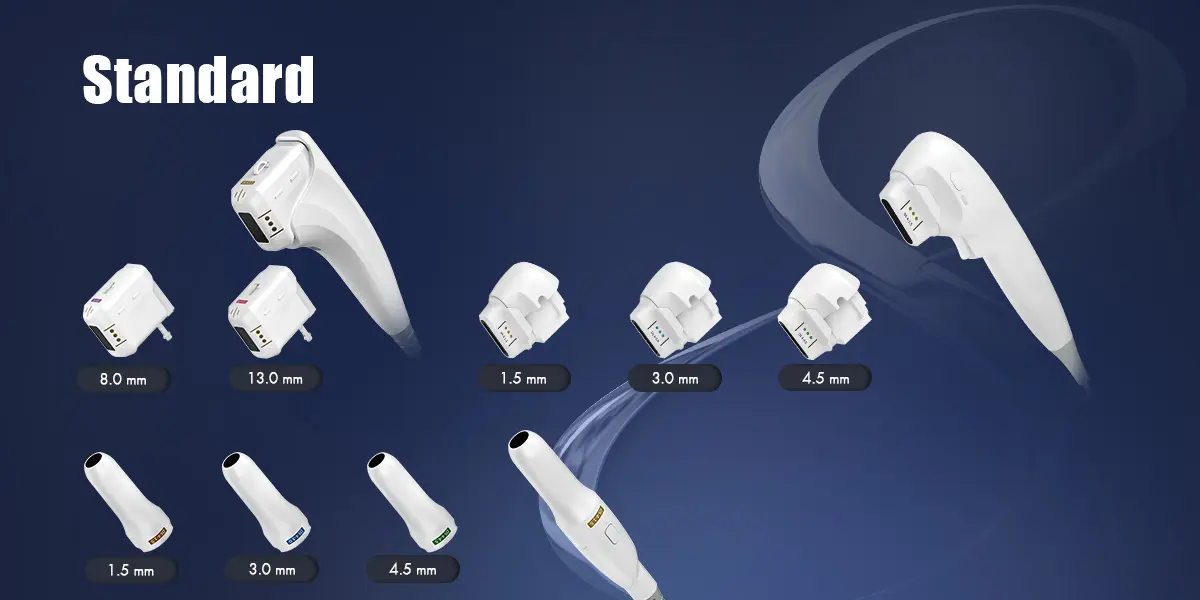

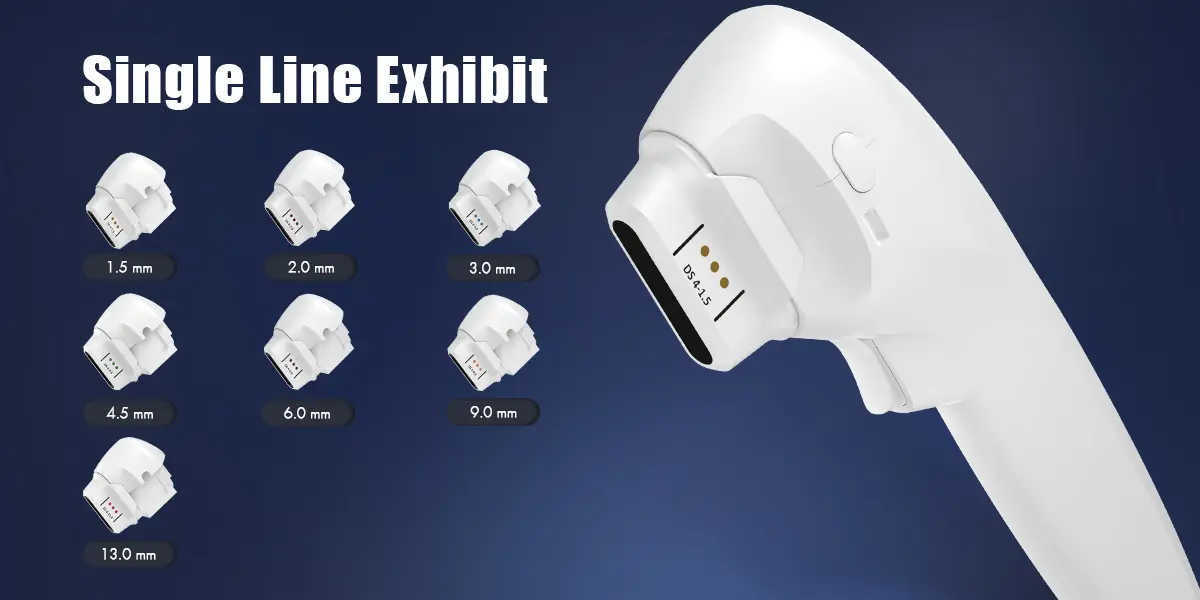

The standard set includes 8 treatment heads as follows:
1.5mm: Targets superficial layers of the skin, ideal for fine lines and wrinkles.
3.0mm: Penetrates deeper to address moderate skin laxity and improve skin texture.
4.5mm: Reaches the SMAS layer for significant lifting and tightening effects.
1.5mm: Focuses on precise, targeted treatments for delicate areas.
3.0mm: Suitable for medium-depth treatments, enhancing skin firmness.
4.5mm: Provides deep tissue stimulation for maximum lifting and contouring.
8.0mm: Designed for larger areas, offering efficient and uniform treatment.
13.0mm: Ideal for body contouring, effectively reducing fat and tightening skin.
Treatment: Body
Treatment: Face, jaw
Treatment: Wrinkles around the eyes, wrinkles around the mouth
This apparatus shall be used with enough caution in the following cases, suggestions from doctors or professionals are necessary prior to use, some details are listed as follows:

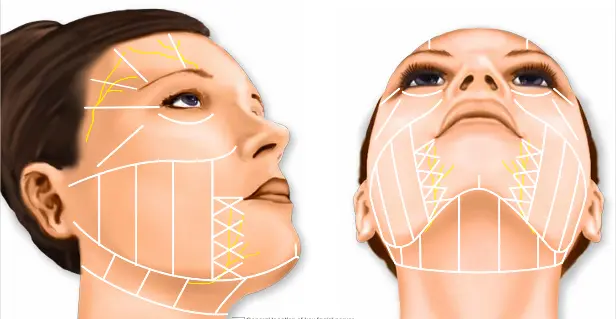

(1) Apply 4.5mm, 3.0mm, 1.5mm treatment head for face treatment. Operate only one Pass for each type of treatment head.
(2) Single Point Treatment Head is to treat small size area such as nasolabial folds, jawlines, etc. Slide the handpiece during treatment.
(3) After each energy line shot output, move the handpiece for 1-3mm each step for next shot.
Apply a Hydrating Facial Mask after treatment.
| DEPTH | Parts to be Treated | Handpiece | Energy Line Length (mm) | Pitch (Distance Between Points) | Frequency | Energy | Shots Quantity |
|---|---|---|---|---|---|---|---|
| 1.5mm | Canthus | Single Point Treatment Head | 20 | -- | 2 | 0.6-0.8 | 80-150 |
| Forehead | Single Line Treatment Head | 20 | 1.5-1.8 | -- | 0.6-0.8 | 40-80 | |
| Nasolabial Folds | Single Point Treatment Head | 20 | -- | 2 | 0.8-0.9 | 40-60 | |
| Cheeks | Single Line Treatment Head | 20 | 1.5-1.8 | -- | 0.7-0.9 | 80-150 | |
| 3.0mm | Upper Neck | Single Line Treatment Head | 25 | 1.5-1.8 | -- | 0.7-0.9 | 60-120 |
| Cheeks | Single Line Treatment Head | 25 | 1.2-1.6 | -- | 0.8-1.1 | 80-150 | |
| Nasolabial Folds | Single Point Treatment Head | 25 | -- | 2 | 0.8-0.9 | 40-60 | |
| Cheekbones/Chin | Single Point Treatment Head | 25 | -- | 2 | 0.7-0.9 | 100-150 | |
| 4.5mm | Upper Neck | Single Line Treatment Head | 25 | 1.5-1.8 | -- | 0.7-0.9 | 60-120 |
| Cheeks | Single Line Treatment Head | 25 | 1.2-1.6 | -- | 0.8-1.1 | 80-150 | |
| Nasolabial Folds | Single Point Treatment Head | 25 | -- | 2 | 0.8-0.9 | 40-60 | |
| Cheekbones/Chin | Single Point Treatment Head | 25 | -- | 2 | 0.7-0.9 | 100-150 |
| DEPTH | Parts to be Treated | Energy Line Length (mm) | Clearance (Distance Between Energy Points in Length) | Energy Line Width (mm) | Pitch (Distance Between Energy Points in Width) | Energy |
|---|---|---|---|---|---|---|
| 8.0mm | Chest | 25 | 1.5-1.8 | 11 | 1.5-1.8 | 0.8-1.0 |
| Back | 25 | 1.2-1.5 | 11 | 1.2-1.5 | 0.9-1.2 | |
| Abdomen | 25 | 1.2-1.5 | 11 | 1.2-1.5 | 0.9-1.5 | |
| Arms/Legs | 25 | 1.2-1.5 | 11 | 1.2-1.5 | 0.9-1.2 | |
| 13.0mm | Chest | 25 | 1.5-1.8 | 11 | 1.5-1.8 | 0.8-1.0 |
| Back | 25 | 1.2-1.5 | 11 | 1.2-1.5 | 0.9-1.2 | |
| Abdomen | 25 | 1.2-1.5 | 11 | 1.2-1.5 | 0.9-1.5 | |
| Arms/Legs | 25 | 1.2-1.5 | 11 | 1.2-1.5 | 0.9-1.2 |
NOTES: All parameters are for reference only. Operators shall find proper parameters for patients according to practical experience. Generally, operators shall try the parameters from lower to higher values. The best parameter shall be the highest value within patient's tolerance.
(1) After treatment, there will be a little reddish, blister or edema, which will disappear in one to two days. Ice compress is forbidden after treatment in two hours;
(2) In the same day, shower with hot water is forbidden, no sauna or facial massage in two weeks. RF treatment, IPL and laser treatment can be used in four weeks;
(3) In the latter part of the treatment will appear some projecting skin, a white line, which is subcutaneous focus, the energy is a bit too high, opening each point of distance when treatment, after 1-2 weeks will disappear. After the treatment of white lines appear in the site, the next day there is a fine crust phenomenon, the skin is heated and then shrink the phenomenon, like blisters after the same, will naturally heal;
(4) Moisturize: at least three masks in one week (Surgery process because of high temperature will damage the hyaluronic acid and collagen fibers, causing skin dry, itchy, hard, swollen);
(5) Do not eat things with heavy pigmentation. No drink and eat spicy food;
(6) Suggest to take oral collagen, 10g ACMETEA, 1-6 months depends on skin restoration;
(7) Try to use less cosmetics. Cosmetics and skin care products are mainly isolated. Postoperative skin sweat gland have not fully recovered, isolation will make the skin tissue sweat moisture can not be completely ruled out and cause inflammation.
We recommend avoiding any exercise for 24 to 48 hours to avoid irritation on your skin due to sweat and heat.
HIFU Treatment results depend on factors like your lifestyle after the treatments, as specific habits might affect the final results. We still recommend repeating HIFU 6 up to 8 weeks apart, exercising regularly, and maintaining a healthy diet.
No. It’s best to avoid getting a facial after your HIFU Treatment as your skin might still be sensitive due to the session.
HIFU treatment targets fat layers that must be eliminated and shouldn’t harm anything underneath the muscle layers. However, it’s best to get in touch and consult your doctor for medical clearance to ensure you don’t have any pregnancy-related conditions before undergoing HIFU.
Smoking negates the effects of HIFU; therefore, you should avoid smoking during the course of your treatments.
After a session, you’ll be able to see visible results. However, one to two sessions are recommended. Touch-ups and maintenance sessions are usually done yearly.
