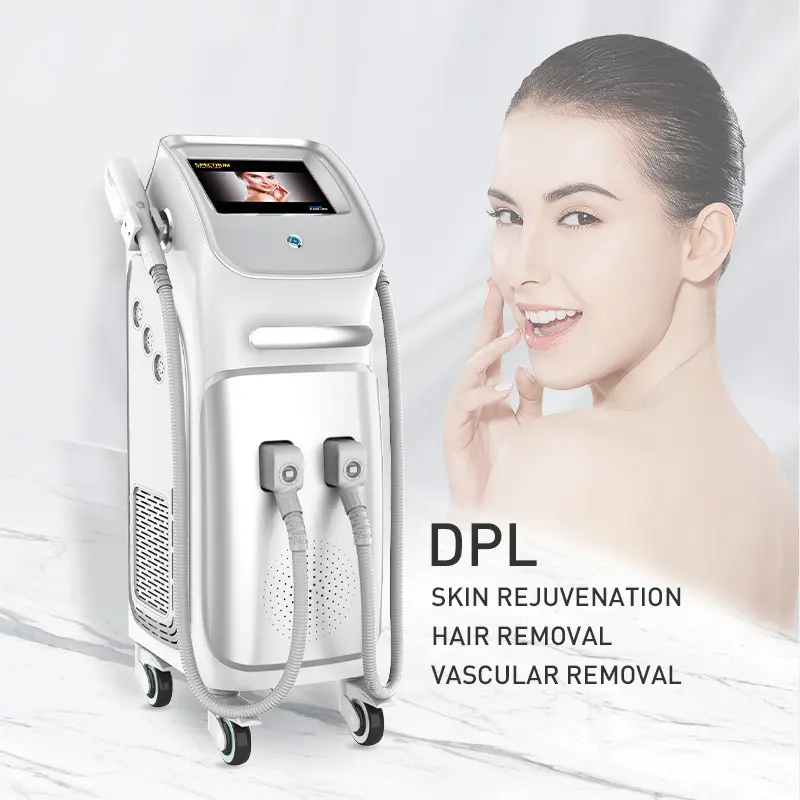

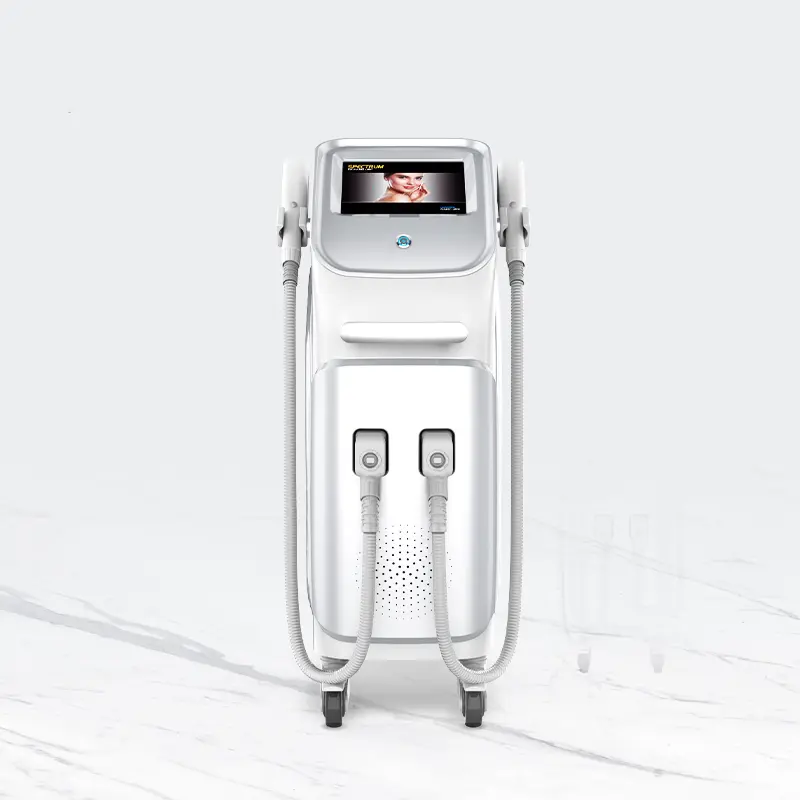

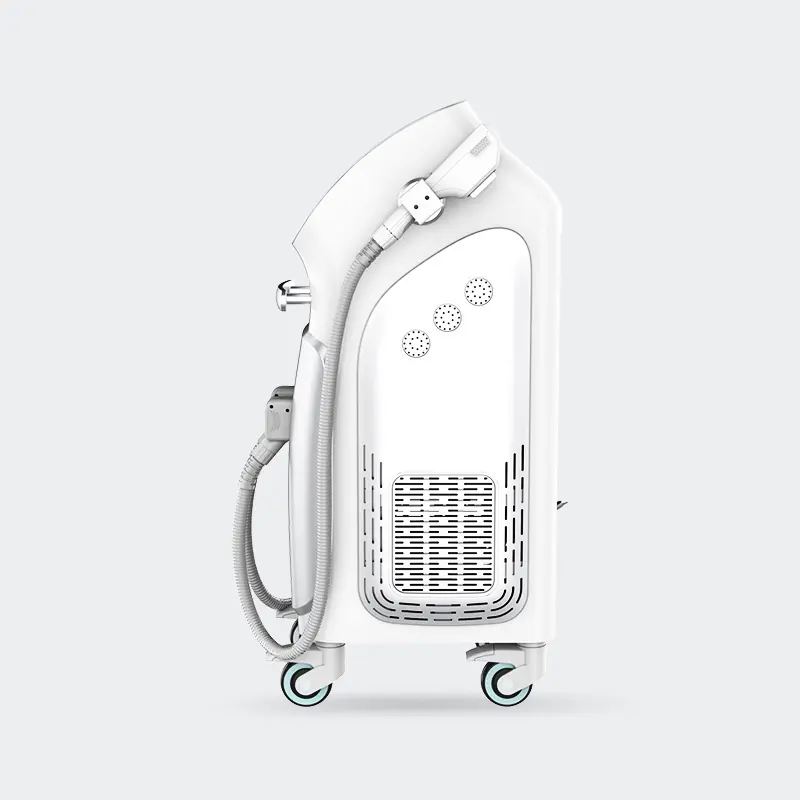

OEM DPL OPT IPL Hair Removal Wrinkle Removal and Pigmentation Treatment Skin Care Machine Manufacturer, Suppliers

Applitation:

Hair removal

Skin rejuvenation

Skin tightening

Acne removal

Pigment removal

Vascular lesion

Product Description

Application

Freckle Removal
Freckles, spotted age spots, etc.
DPL Precise Skin Rejuvenation
Whitening and rejuvenating skin, tightening pores, improving skin texture, and enhancing skin elasticity.
Acne Treatment
Improve acne, improve local inflammation and redness.
Red Blood Streaks
Red blood streaks caused by facial flushing and capillary dilation.
Hair Removal
Including front and back hairline, face, lip hair, neck, arms, hands, body, bikini, legs, feet.

How Does DPL Machine Work?

The machine uses DPL (Dye Pulsed Light) precision skin rejuvenation technology that is narrow-spectrum photo skin rejuvenation (DPL). It refers to a new optical skin rejuvenation technology, different from traditional technology (such as IPL). The new technology can stimulate 100nm narrow-spectrum pulsed light which also contains the absorption peaks of melanin, oxygen, and hemoglobin, allowing accurate concentration of effective therapeutic energy, thus quickly and efficiently solving facial freckles and telangiectasia (red face) problems.

DPL Machine Working Principle

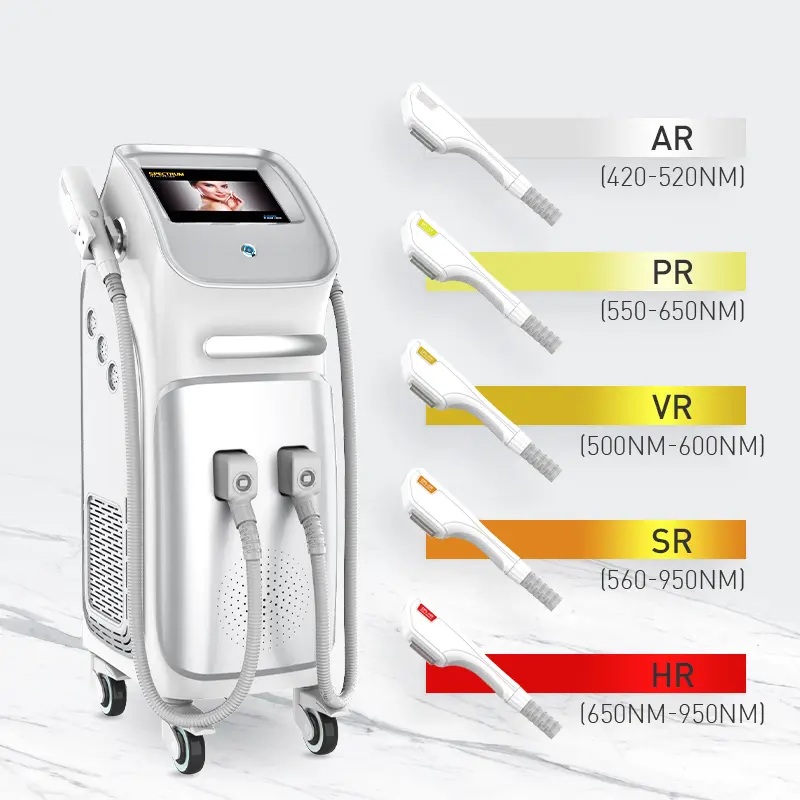

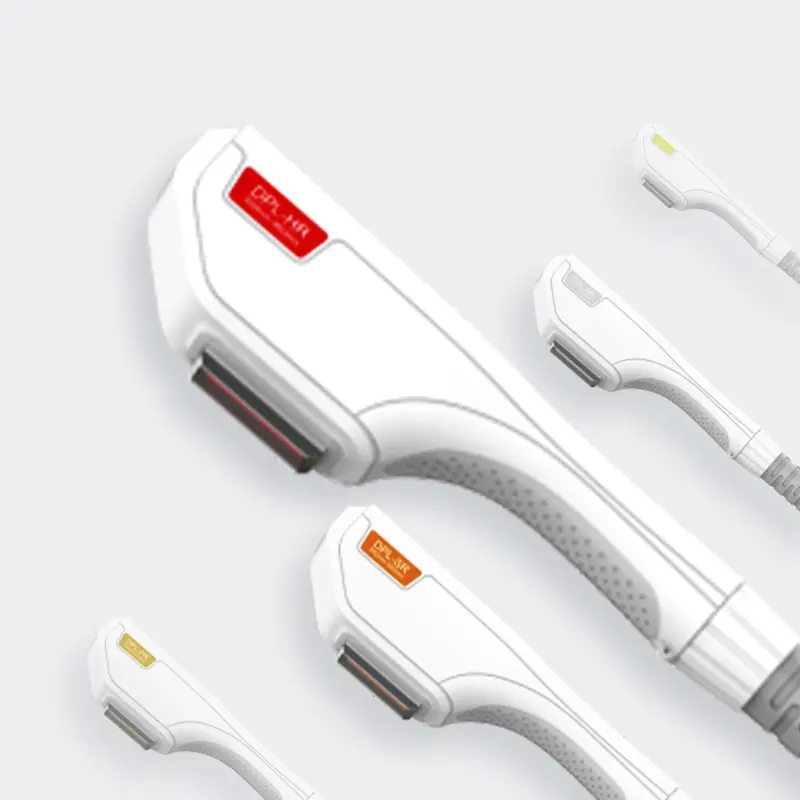

Auto-Identified 5 Handles for Your Choice

VR (500nm-600nm)
Remove vascular and improve face redness
PR (550nm-650nm)
Remove freckle, sunburn, age spots, acne scar and facial defects, etc.
AR (420nm-520nm)
Improve acne, remove acne scar
SR (560nm-950nm)
Pore remover, skin whitening, skin tightening, anti-puffiness, dark circles, etc.
HR (650nm-950nm)
Permanent and Painless Hair removal. Remove unwanted hair on full body.

Advantages of SPECTRUM DPL

1
Narrow-spectrum 100nm Delicate Pulse Light Technology
Quickly and efficiently solve facial freckles and telangiectasia (red face) problems.
2
Core of Light Imported from Germany
Xenon lamp is the core of energy. The light adopts German original imported xenon lamp which has obtained many patented technologies around the world, and the minimum effective light emission is 1,000,000 times.
3
OPT Power Supply
The energy is uniform and stable, which not only improves the comfort treatment feeling, but also maintains high energy output.
4
Multiple Wavelengths Available for All Skins
Five handles for your choice: HR, SR, PR, VR, AR.
5
In-motion Technology
Fast mode with 10Hz high frequency, which speeds up the operation and reduces treatment time.

DPL Machine Specifications

Wavelength PR: 550-650nm, VR: 500-600nm
Optional: (HR: 650-950nm, SR: 560-950nm, AR: 420-520nm)
Fluence 10-50J/cm² | SHR: 1-10J/cm²
Frequency 1-10Hz
RF Power 1-30W
Input Power 4000W
Power Source Pure Sapphire
Lamp German Imported lamp
Spot Size 10*40mm for (SR, VR, AR, PR) | 15*50mm for HR
Contact Cooling Temperature Max -10℃
Cooling System Built-in water cooling + semiconductor cooling + air cooling
LCD Screen 10.4 inch true color touch screen control
Package Size 82*59*122cm
Weight 99kg

Treatment Procedure

(1)
All cosmetic treatments should be done after consultation, protection, photos, etc. Patients need to have the right expectation toward the treatment.
(2)
Cleaning the treatment area; patients need to remove any jewelry.
(3)
Taking a skin test before the treatment. Choose an area without effect on appearance (such as behind ears), apply cold gel on the test skin, and adjust energy for about 2-3 spots. After 3 minutes, observe the area; if redness occurs, it is the suitable energy level.
(4)
After the skin test, apply cold gel to the treatment area and use the suitable energy to conduct treatment. Do not press the skin during treatment.
(5)
Before hair removal treatment, shave the hair to 1-2mm. The treatment process follows the same steps as above.
(6)
According to the normal physiological cycle, the interval time is 21 days. The complete course typically requires 3-5 sessions.
DPL Treatment Procedure

Exhibition

We have sold many products worldwide. Our company participates in many exhibitions every year, such as in Italy, Dubai, Spain, Malaysia, Vietnam, India, Turkey, and Romania. Below are photos from our exhibitions:

Exhibition Photo 1
Exhibition Photo 2
Exhibition Photo 3

Package and Delivery

We package the machine in an export standard metal box, and we use DHL, FedEx, or TNT to deliver the machine to you via door-to-door service.

Package and Delivery 1
Package and Delivery 2
Package and Delivery 3
Package and Delivery 4
Package and Delivery 5
Package and Delivery 6

Frequently Asked Questions (FAQ)

Q1: What is DPL precision skin rejuvenation technology?

DPL (Dye Pulsed Light) is a narrow-spectrum photo skin rejuvenation technology (100nm spectrum). Unlike traditional IPL, it concentrates therapeutic energy precisely to quickly solve facial freckles and red blood streak issues.

Q2: What skin issues can the 5 auto-identified handles treat?

The system includes 5 specific handles: VR for vascular & redness, PR for freckles & age spots, AR for acne treatment, SR for pore tightening & skin whitening, and HR for permanent body hair removal.

Q3: What is the lifespan of the German imported xenon lamp?

The core light source utilizes an original German imported xenon lamp with a minimum guaranteed effective light emission of 1,000,000 flashes.

Q4: How many treatment sessions are recommended and what is the interval?

A standard treatment course consists of 3 to 5 sessions, with an interval of 21 days between sessions based on normal skin physiological cycles.

Q5: How is the machine packaged and delivered?

Machines are packaged in export-standard metal boxes for ultimate protection during transit, and shipped directly to your door via major couriers such as DHL, FedEx, or TNT.
