DPL (Delicate Pulsed Light) is the latest technology of combining IPL and laser power for permanent hair removal that converts light energy into heat energy, triggering the root of the hair, offering a stronger yet gentler solution.
DPL is a new technology of permanent hair removal, with target pure wavelength, which works in a high repetition rate of short pulses, by gradually heating the dermis to a temperature that effectively damages the hair follicles and prevents re-growth painlessly, while avoiding injury to the surrounding tissue.
After the energy reaches the dermis without any attenuation, only a little energy stays in the epidermis.
The energy is concentrated in the shallow layer, and the thermal effect of the target tissue is low.
Hair Removal Spectrum (640nm – 750nm): Acts on the hair follicles based on the selective photothermal effect of pulsed light. It increases the temperature of the hair follicle and destroys the growth cells of the hair follicle, while guaranteeing the ratio of melanin absorption rate and penetration depth simultaneously. The epidermis is lowered in advance to achieve effective hair removal.
Skin Rejuvenation Spectrum (530nm – 750nm): Narrow-spectrum light simultaneously generates photothermal photochemical effects, rearranging collagen fibers and elastic fibers in the deep part to restore skin elasticity. It enhances vascular function, improves circulation, and makes skin smooth, delicate, and flexible. The higher energy density of DPL is exceptionally effective for treating epidermal acne and pigmentation.
| Specification of SHR-950S | |
| Wave Length | PR: 550-650nm | VR: 500-600nm |
| Optional: (HR: 650-950nm | SR: 560-950nm | AR: 420-520nm) | |
| Fluence | 10-50J/cm² | SHR: 1-10J/cm² |
| Frequency | 1-10Hz |
| RF Power | 1-30W |
| Input Power | 4000W |
| Power Source | Pure Sapphire |
| Lamp | German Imported Lamp |
| Spot Size | 10*40mm for (SR, VR, AR, PR) | 15*50mm for HR |
| Contact Cooling Temp | Max -10℃ |
| Cooling System | Built-in Water Cooling + Semiconductor Cooling + Air Cooling |

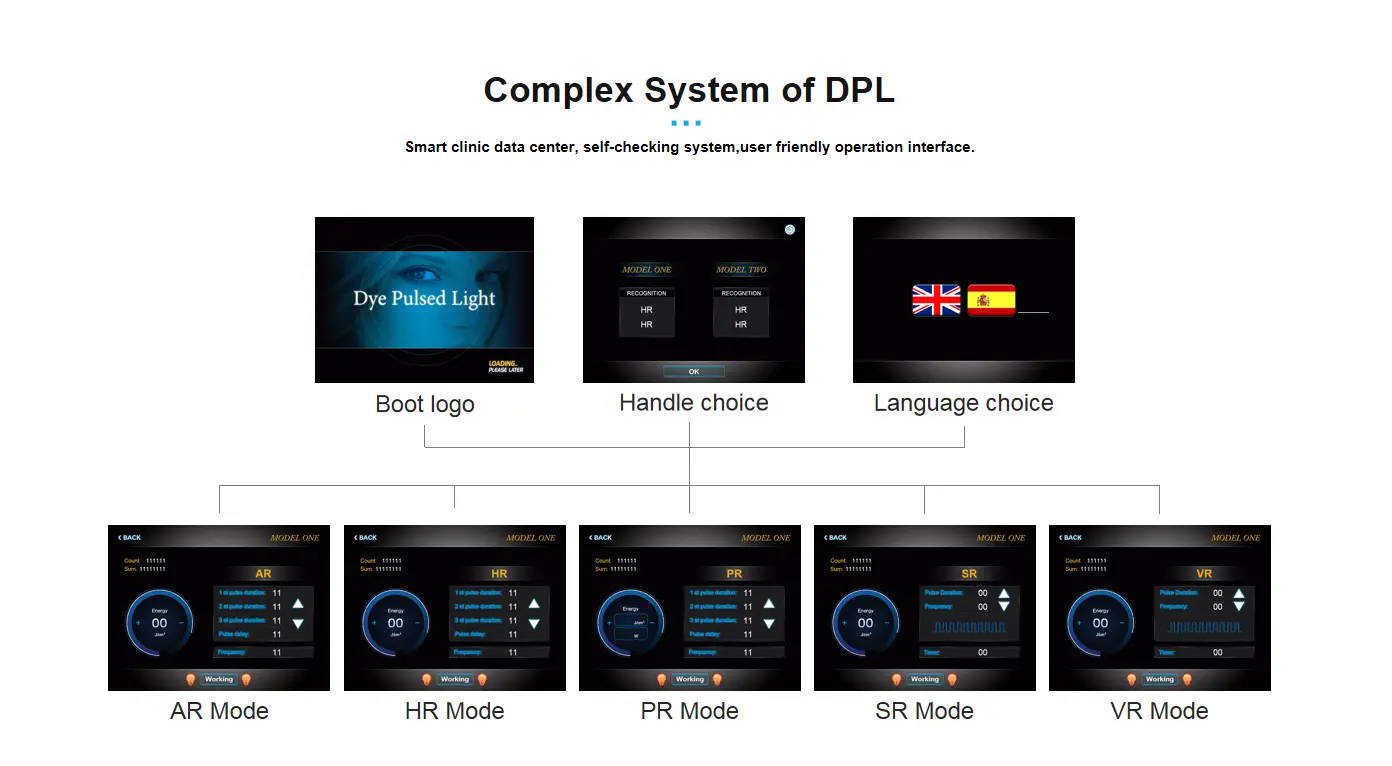

| LCD Screen | 10.4 inch true color touch screen control |
| Package Size | 82 * 59 * 122 cm |
| Weight | 99 kg |
Cleanse your face with makeup remover and wear an eye mask.
Apply the cold gel and choose the appropriate energy parameters.
Burning and prickling sensations are clinical standards.
Each spot has a 1 mm spot overlap.
Apply cold compress for 15-30 minutes after operation.
Cold compresses eliminate subsequent heat and disperse heat to avoid burns.
DPL (Delicate Pulsed Light) combines IPL and laser power for permanent hair removal. It converts light energy into heat energy, targeting hair roots gently yet effectively by gradually heating the dermis to damage hair follicles without injuring surrounding tissue.

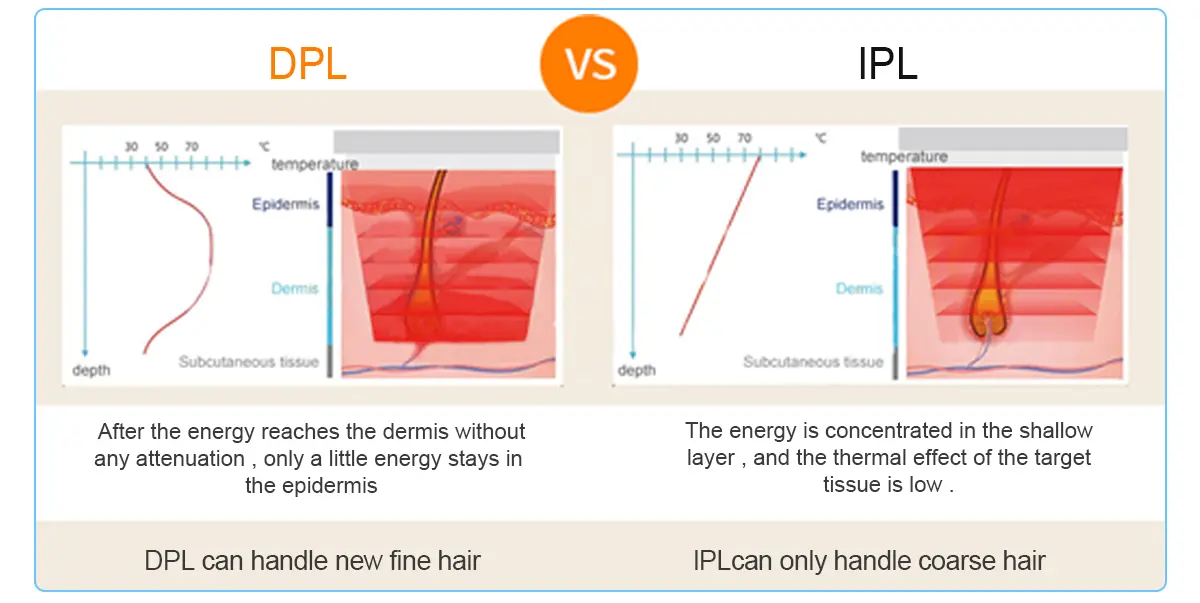

Unlike traditional IPL, which concentrates energy primarily in shallow skin layers and mostly affects coarse hair, DPL light delivers energy directly to the dermis without attenuation, allowing it to effectively treat fine and new hair.
This system performs 6 primary clinical applications: Permanent Hair Removal, Skin Rejuvenation, Skin Tightening, Acne Removal, Pigment Removal, and Vascular Lesion treatments.

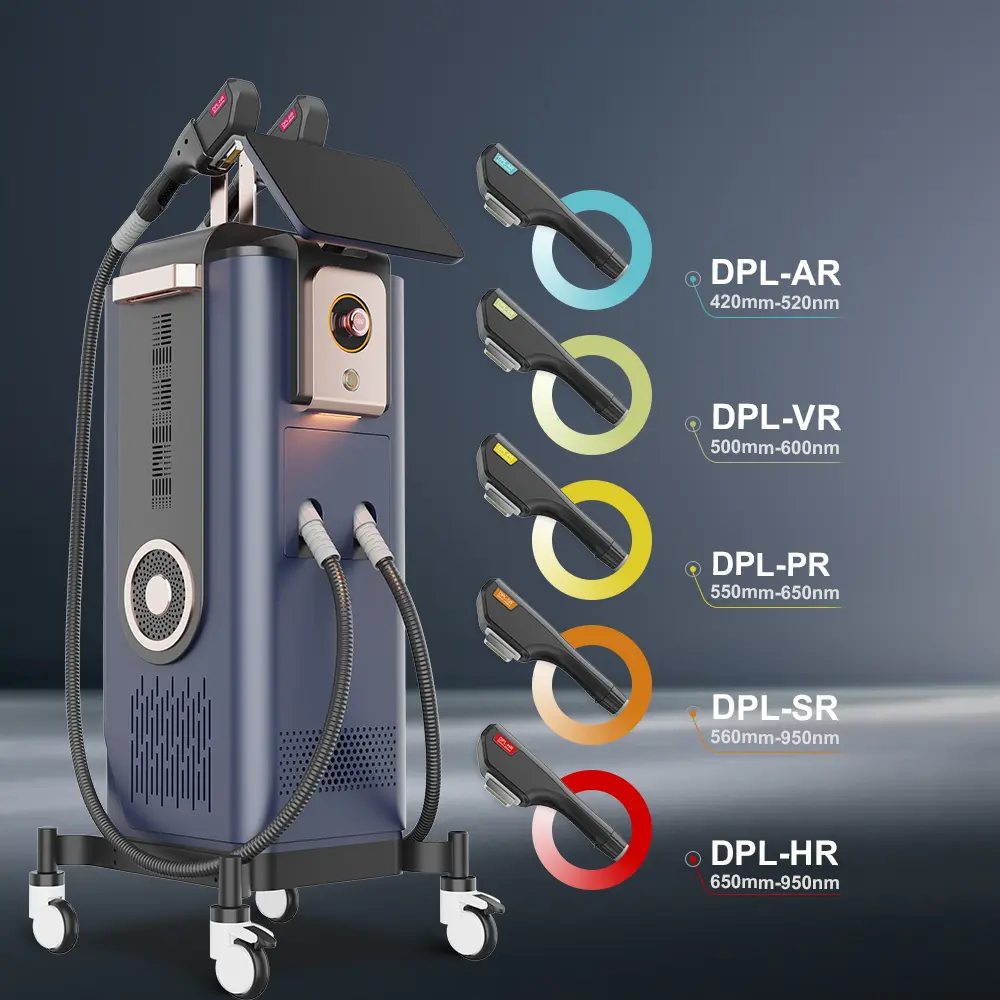

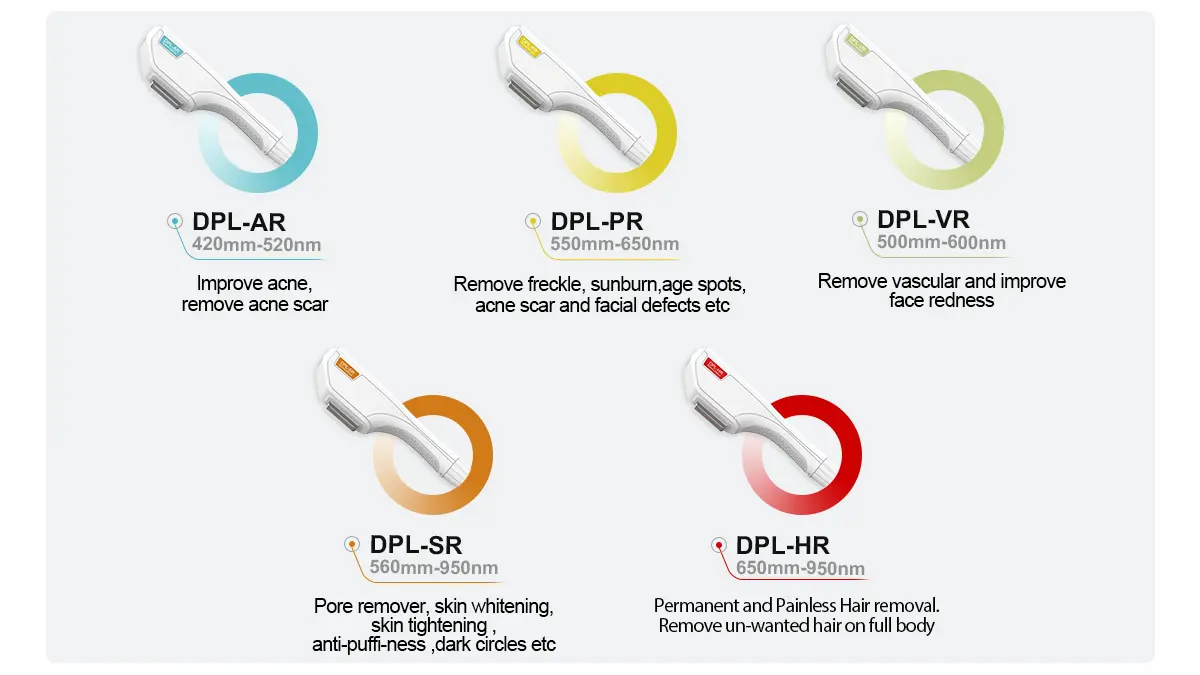

The machine features 5 auto-identified treatment handles catering to different spectrums and skin conditions: HR (Hair Removal), SR (Skin Rejuvenation), PR (Pigment Removal), VR (Vascular Removal), and AR (Acne Removal).
Applying a cold compress for 15-30 minutes post-procedure dissipates accumulated sub-dermal heat, effectively preventing burns and soothing the skin after photothermal energy delivery.
