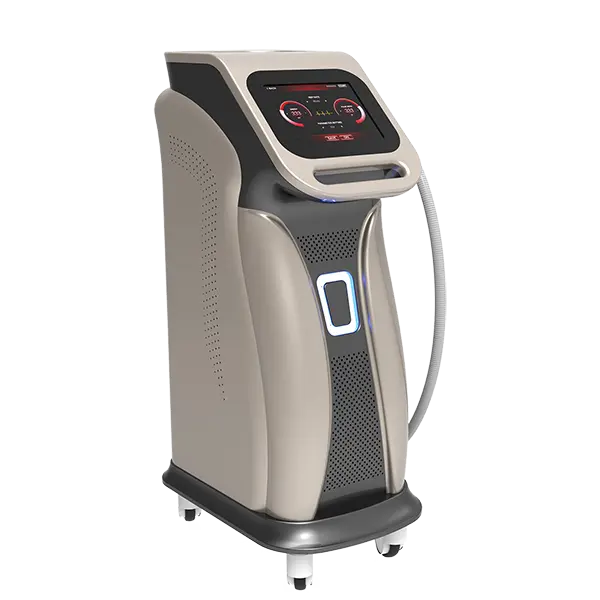

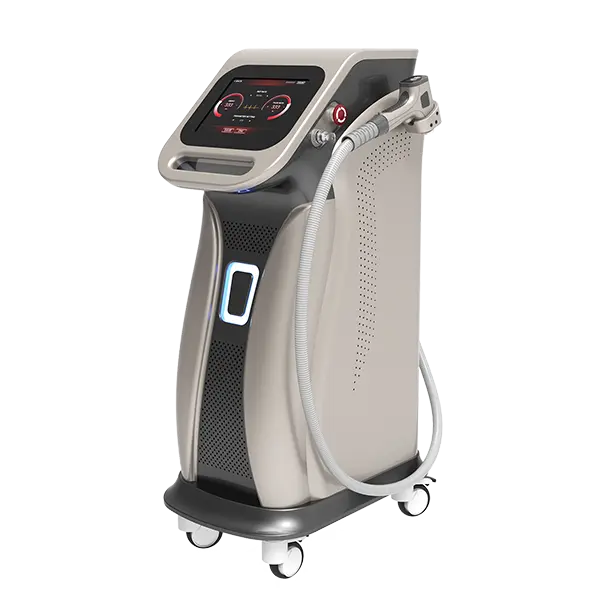

The basic theory of Diode Laser Hair Removal Machine is the biological effect. The machine emits the 808nm laser which could be absorbed easily by the pigment located in hair follicle while won’t damage the normal surrounding epidermis. The light energy is absorbed by the pigment in the hair shaft and follicle then it is transformed into heat energy, thereby it rises the temperature of follicle, till the temperature is high enough, the follicle structure is destroyed irreversible, the destroyed follicle will be removed after a period of natural physical process, thus achieve the permanent hair removal purpose.
The 755 808 1064nm is best for absorbing melanin so that can effect in different parts and hair follicle and reach to removing any hair effectively. From the diagram, we can see 808nm is best for absorbing melanin and less absorbing others.
Laser pulse duration is 10ms to 80ms adjustable, can do treatment effectively special for different hair and lasting!
808 hair removal system uses penetrate technology and skin absorbs fewer lasers and no pigmentation.
The Pure Sapphire contact cooling system of 808 diode laser removal system can make sure that the doctor use the maximum energy and can not hurt skin. This kind of cooling system can make sure that no hurt to skin when patients are given more pressure. As reported, the pressure can increase 30%-40% light.
755nm 808nm 1064nm diode laser hair removal machine use 12*12mm and 12*23 big spot size. It makes sure that when doing large area hair removal and prompt treatment speed and efficiency. Because of big spot size, it can escape from repeated treatment for hair area.

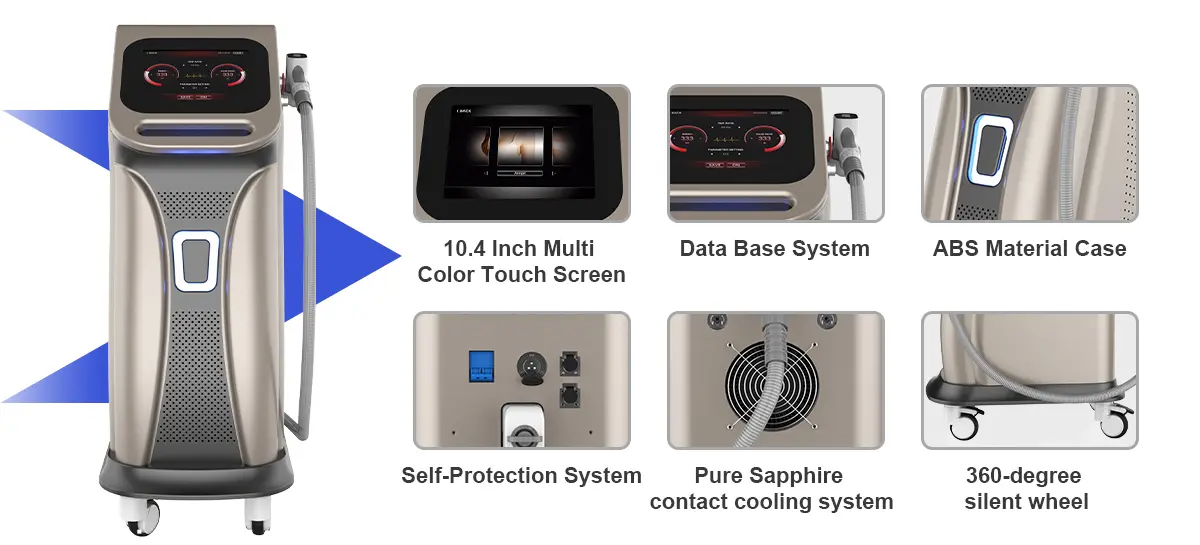

Make the operation more easy 10.4 inch multi color touch screen, you can choose man or woman , skin color and treatment areas, very easy to operate!

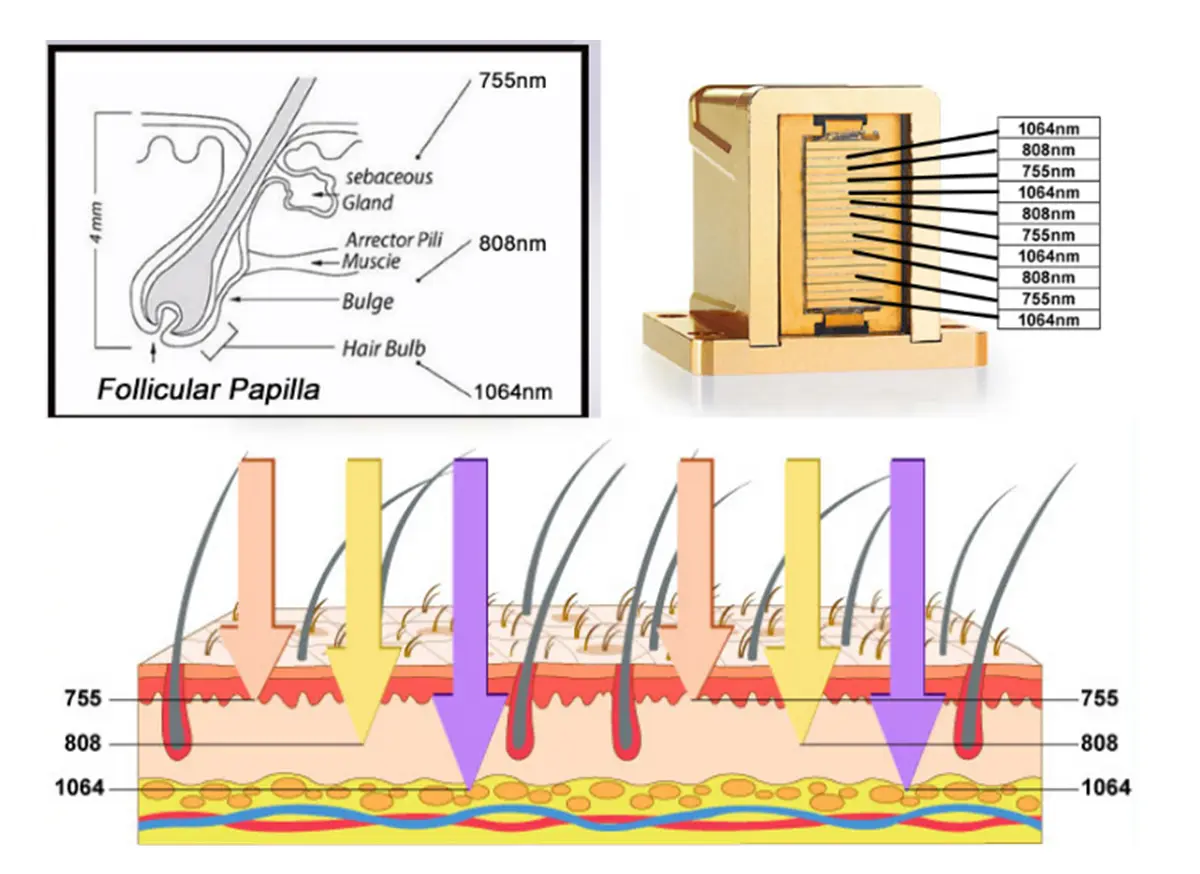

As the picture shows, the P-MIX combine 3 wave laser well. Each wave have its advantage:
• The 755nm mainly for the light hair on white skin.
• The 808nm have a good result for all skin type and hair color.
• The 1064nm do a good job for black skin hair removal.
The Alexandrite wavelength offers more powerful energy absorption by the melanin chromophore, making it ideal for the widest range of hair types and color-especially light -colored and thin hair. With more superficial penetration, the 755nm wavelength targets the bulge of hair follicle which is especially effective for superficially embedded hair in areas such as the eyebrows and upper lips.
The classic wavelength of laser hair removal treatment, the 808nm wavelength offers deep penetration of hair follicle with high-level average power, a high repetition rate and a large 2cm spot size for fast treatment.
The 808nm wavelength has a moderate melanin absorption level making it safe for darker skin types. Its deep penetration capabilities target the bulge and bulb of the hair follicle while moderate tissue depth penetration makes it ideal for treating the arms, legs, cheeks, and beard.
The YAG 1064 wavelength is characterized by lower melanin absorption, making it a focused solution for darker skin types. All the same time, the 1064nm offers the deepest penetration of hair follicle, allowing it to target the bulb and papilla, as well as treat deeply embedded hair in areas such as the scalp, armpits, and public areas.
With higher water absorption generating higher temperature, the incorporation of the 1064nm wavelength increases the thermal profile of the overall laser treatment for most effective hair removal.

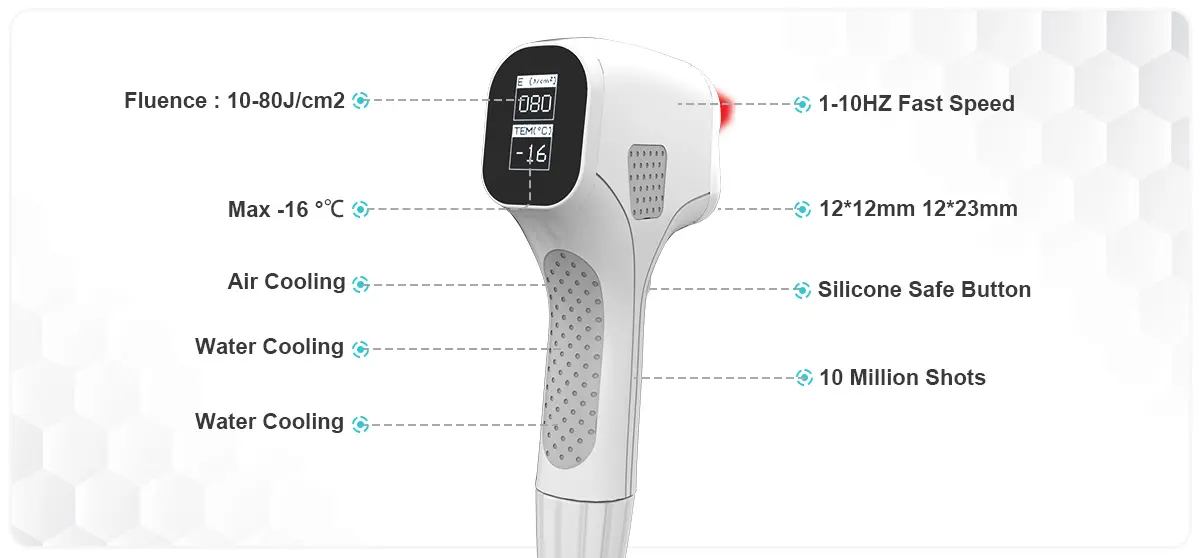

Treatment Handles: 100 million Shots Temperature visualization handle
| Wavelength | 755nm, 808nm, 1064nm and triple wavelength |
| Spot size | 12*12mm, 12*23mm |
| Repetition rate | 0.5-10HZ |
| Pulse width | 20-800ms |
| Laser output | 2000W / 1200W / 800W / 600W |
| Energy density | 10-100J/cm2 |
| Sapphire contact cooling | -5~0℃ |
| Laser Bar | 10 or 12 bars |
| Life time of laser bar | 100 million shots |
| Operate interface | 12' True color touch screen |
| Cooling system | Air & water cooling |
| Power supply | 85-260V full range, 50/60HZ |
